Description
| Oil Grade | 320 |
|---|---|
| Remarks | Accepted |
| Duration of Test | 5 Mins Cw/5 Mins Ccw |
| Noise Level | Max 85dba at 1 Mtr. Distance |
| Leakage | No |
| Oil Filled | Yes |
| Output Speed Rpm | 78.64554888 |
| Gearbox Output Shaft Type | Solid Output Shaft With Keyway |

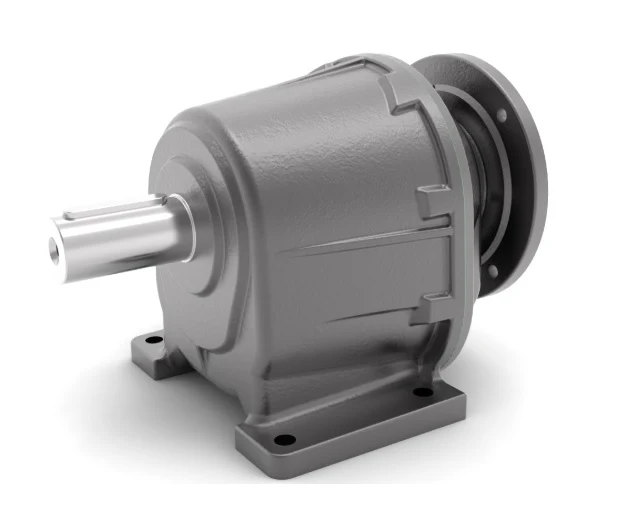

| Gearbox Type | Inline Helical Gearbox |
| Lubrication | Without Oil |
| Input Speed Rpm | 1440 |
| Input Motor Frame Type | Iec Std. Frame 132 B5 |
| Input Power | 10 Hp / 7.50 Kw |
| Gear Ratio | 18.31 |
| Gearbox Housing Type | Cast Iron |
| Gearbox Motor Coupling | Direct Coupled |
| Gearbox Mounting Version | Foot Mounting |
| Input Shaft Diameter | 38 Mm |
| Efficiency | 0.95 |
| Warranty | 12 Months |
| Output Shaft Diameter | 55 Mm |
| Torque Rating | 1350 Nm |
| Service Factor | 1 |
